Industrial sealing materials play an important role in preventing fluid leakage, protecting equipment, and maintaining reliable operation in piping systems, pumps, valves, heat exchangers, and other industrial equipment.
Different sealing materials are designed for different operating conditions. EPDM is widely used for water and weather-resistant sealing applications, while PTFE offers excellent chemical resistance and low friction. Graphite packing is commonly selected for high-temperature sealing applications where thermal stability is important.
This article explains the characteristics, advantages, limitations, and typical applications of EPDM gaskets, PTFE packing, and graphite packing, helping users understand how to select the appropriate sealing material for different industrial requirements.
What Are Industrial Sealing Materials?
Industrial sealing materials are materials used to create a barrier between two surfaces and prevent unwanted leakage of liquids, gases, chemicals, steam, or other media.
Common industrial sealing products include:
- Flange gaskets
- Gland packing
- Valve packing
- Pump packing
- Rubber gaskets
- PTFE seals
- Graphite packing
- Mechanical seals
- O-rings
- Custom sealing components
The correct material depends on several factors, including:
- Sealing location
- Process medium
- Operating temperature
- Operating pressure
- Chemical compatibility
- Static or dynamic movement
- Shaft or stem speed
- Flange configuration
- Required service life
Among the many available sealing materials, EPDM, PTFE, and graphite are widely used because each offers specific performance advantages.

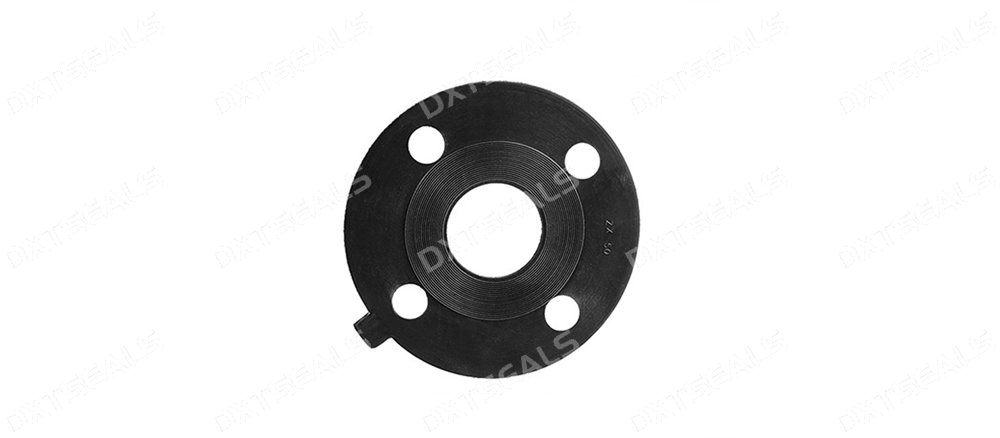

EPDM Gaskets
EPDM stands for ethylene propylene diene monomer rubber. It is a synthetic elastomer widely used for gaskets and other sealing components.
EPDM gaskets are particularly suitable for water-based applications and environments where resistance to weathering, ozone, and aging is important.
Key Properties of EPDM Gaskets
EPDM provides several useful properties for industrial sealing:
| Property | EPDM Performance |
|---|---|
| Water resistance | Excellent |
| Weather resistance | Excellent |
| Ozone resistance | Excellent |
| Elasticity | Good |
| Aging resistance | Good to excellent |
| Steam resistance | Good, depending on grade and conditions |
| Chemical resistance | Good for many water-based and selected chemicals |
| Petroleum oil resistance | Generally poor |
| Typical sealing form | Flange gaskets, rubber gaskets, molded seals |
EPDM can maintain flexibility over a broad range of service conditions, although the actual temperature capability depends on the specific compound and operating environment.
Typical Applications of EPDM Gaskets
EPDM gaskets are commonly used in:
- Water supply systems
- Cooling water systems
- HVAC piping
- Chilled water systems
- Water treatment equipment
- Industrial piping
- Outdoor piping systems
- Low-to-moderate temperature fluid systems
EPDM is especially useful when the sealing system is exposed to water, moisture, sunlight, ozone, or outdoor environmental conditions.
EPDM Gasket Limitations
Material compatibility must always be considered before selecting an EPDM gasket.
EPDM is generally not the first choice for sealing applications involving petroleum-based oils, fuels, and many hydrocarbon-based fluids. In such applications, alternative elastomers or other sealing materials may be more appropriate.
The actual suitability should be confirmed based on the specific fluid, temperature, concentration, pressure, and gasket compound.
PTFE Packing
PTFE packing is a gland packing material manufactured from polytetrafluoroethylene (PTFE). It is widely used where chemical resistance, low friction, and clean sealing performance are important.
PTFE packing can be used in valve stems, pumps, mixers, and other equipment where packing material is compressed inside a stuffing box to create a sealing barrier.
Key Properties of PTFE Packing
PTFE is known for its excellent chemical resistance and low coefficient of friction.
| Property | PTFE Packing Performance |
|---|---|
| Chemical resistance | Excellent |
| Friction | Very low |
| Water absorption | Very low |
| Moisture resistance | Excellent |
| Non-stick characteristics | Excellent |
| Corrosion resistance | Excellent |
| Temperature capability | Good, depending on grade and design |
| Typical sealing form | Valve packing, pump packing, gland packing |
These properties make PTFE packing suitable for many aggressive chemical and fluid-handling applications.
Types of PTFE Packing
Depending on the application, PTFE packing can be manufactured in different forms, including:
- Pure PTFE packing
- Braided PTFE packing
- Expanded PTFE packing
- Lubricated PTFE packing
- Reinforced PTFE packing
Reinforcement and construction can be selected according to the requirements for pressure resistance, wear resistance, dimensional stability, and mechanical strength.
Typical Applications of PTFE Packing
PTFE packing is commonly used in:
- Chemical processing equipment
- Industrial valves
- Pumps
- Mixers
- Water treatment equipment
- Chemical fluid handling
- Corrosive media systems
- General industrial fluid equipment
Its low friction characteristics can also help reduce operating resistance in valve stems and other moving sealing components.
Graphite Packing
Graphite packing is a sealing packing material designed for applications where high-temperature performance and thermal stability are important.
Graphite packing can be manufactured using flexible graphite, expanded graphite, braided graphite, or reinforced graphite constructions.
Key Properties of Graphite Packing
Graphite provides several advantages for demanding industrial sealing applications.
| Property | Graphite Packing Performance |
|---|---|
| High-temperature resistance | Excellent, depending on grade and environment |
| Thermal stability | Excellent |
| Thermal conductivity | High |
| Friction | Low |
| Chemical resistance | Good to excellent, depending on medium |
| Conformability | Good |
| High-temperature sealing | Excellent |
| Typical sealing form | Valve packing, pump packing, gland packing |
Graphite can maintain sealing performance at temperatures where many conventional elastomeric materials are unsuitable.
Typical Applications of Graphite Packing
Graphite packing is frequently used in:
- Steam systems
- High-temperature valves
- Industrial pumps
- Power generation equipment
- Chemical processing equipment
- Heat transfer systems
- High-temperature process equipment
- Industrial fluid systems
Graphite packing is particularly useful for valves and other equipment exposed to elevated temperatures.
Graphite Packing and Oxidizing Environments
Although graphite performs well at high temperatures, the operating environment must be considered carefully.
Graphite can oxidize at elevated temperatures when exposed to oxygen-containing environments. Therefore, the actual service temperature and atmosphere should be evaluated before selecting graphite packing.
Special graphite grades, reinforced constructions, or alternative sealing materials may be required for certain demanding applications.
EPDM Gaskets vs PTFE Packing vs Graphite Packing
EPDM, PTFE, and graphite serve different sealing purposes and should not be considered interchangeable materials.
| Feature | EPDM Gaskets | PTFE Packing | Graphite Packing |
|---|---|---|---|
| Material type | Elastomer | Fluoropolymer | Carbon-based sealing material |
| Main advantage | Water and weather resistance | Chemical resistance and low friction | High-temperature sealing |
| Typical application | Flanges | Valves and pumps | Valves and high-temperature equipment |
| Water resistance | Excellent | Excellent | Good |
| Chemical resistance | Good for selected media | Excellent | Good to excellent |
| Low friction | Moderate | Excellent | Good |
| High-temperature capability | Limited by elastomer grade | Good | Excellent |
| Weather/ozone resistance | Excellent | Excellent | Not the primary advantage |
| Petroleum fluid suitability | Generally limited | Good for many applications | Depends on application |
| Common form | Gasket | Packing | Packing |
The most appropriate material depends on the actual operating conditions rather than simply the general material category.
How to Select the Right Industrial Sealing Material
Selecting a sealing material requires consideration of the complete operating environment.
1. Identify the Sealing Location
First determine whether the material will be used for:
- A flange connection
- A valve stem
- A pump shaft
- A rotating shaft
- A static joint
- A reciprocating component
For example, EPDM is commonly supplied as a flange gasket, while PTFE and graphite are frequently supplied as gland packing.
2. Check the Process Medium
Fluid compatibility is one of the most important selection factors.
Consider whether the sealing material will contact:
- Water
- Steam
- Oils
- Fuels
- Chemicals
- Solvents
- Acids
- Alkalis
- Gas
- Process fluids
The chemical compatibility of the material should be confirmed for the actual medium and concentration.
3. Check Operating Temperature
Temperature can significantly affect sealing performance.
EPDM is widely used for water and environmental applications but has a more limited temperature range than graphite. PTFE can handle many elevated-temperature applications, while graphite is often selected for demanding high-temperature service.
Actual temperature limits depend on the material grade, construction, pressure, medium, and equipment design.
4. Check Operating Pressure
Pressure affects the mechanical requirements of a sealing material.
For packing applications, pressure resistance can depend on:
- Packing construction
- Cross-section
- Compression
- Gland design
- Shaft or stem condition
- Equipment geometry
For flange gaskets, flange condition, gasket thickness, bolt load, and flange alignment also affect sealing performance.
5. Consider Equipment Movement
Static and dynamic applications have different requirements.
For example:
- EPDM flange gaskets are primarily used for static sealing.
- PTFE packing can be used around moving valve stems and pump components.
- Graphite packing can be used for valves and other equipment operating at elevated temperatures.
The movement speed, surface finish, clearance, and lubrication conditions should also be evaluated for dynamic sealing applications.
EPDM, PTFE, and Graphite in Different Industrial Applications
Water and HVAC Systems
EPDM is a common choice for water, cooling water, and HVAC flange gasket applications because of its water resistance, elasticity, and weather resistance.
PTFE can also be used when chemical resistance or a broader range of fluid compatibility is required.
Chemical Processing
PTFE is frequently selected for chemical processing because of its broad chemical resistance and low friction.
Graphite may be suitable for high-temperature chemical process applications, provided the process medium and oxidizing conditions are compatible.
Steam and High-Temperature Systems
Graphite packing is commonly considered for high-temperature valve and steam applications.
The packing grade, reinforcement, valve design, temperature, pressure, and operating environment should all be evaluated when selecting graphite packing.
Industrial Pumps and Valves
Pumps and valves can use different sealing technologies depending on their design.
PTFE packing can provide low-friction sealing for valve stems and pump applications, while graphite packing can be selected for high-temperature service.
EPDM is more commonly used for static gasket applications around suitable water-based systems.
Custom Industrial Sealing Materials
Industrial equipment often requires sealing components that do not match standard catalog dimensions.
Custom sealing products can be manufactured according to:
- Engineering drawings
- Samples
- Customer dimensions
- Equipment specifications
- OEM requirements
- Flange standards
- Special operating conditions
Custom EPDM gaskets can be produced in different shapes, thicknesses, and dimensions. PTFE and graphite packing can also be supplied in different cross-sections, constructions, and material grades.
For specialized applications, the sealing material and product geometry can be optimized together.
Common Industrial Sealing Material Selection Mistakes
Several common mistakes can reduce sealing performance:
Choosing Material Based Only on Temperature
A material that can withstand a certain temperature may still be incompatible with the process medium.
Ignoring the Flange Standard
For EPDM flange gaskets, the gasket dimensions must match the actual flange standard and facing configuration.
Treating Class and PN as Direct Equivalents
American Class designations and European PN designations should not automatically be treated as one-to-one equivalents. The complete flange and gasket specifications should be checked.
Selecting Packing Without Checking Shaft or Stem Condition
PTFE and graphite packing performance depends partly on the condition of the shaft or valve stem, surface finish, clearances, stuffing box, and gland compression.
Using One Material for Every Application
EPDM, PTFE, and graphite have different performance characteristics. Selecting based on the application requirements is more reliable than using a single material universally.
Standard and Custom Industrial Sealing Solutions
A professional sealing manufacturer should be able to provide both standard sealing products and customized solutions.
Standard products can cover common flange dimensions, packing sizes, and industrial applications. Custom manufacturing can address special dimensions, unusual geometries, specific material requirements, and OEM replacement needs.
Depending on the application, industrial sealing products can be manufactured from EPDM, PTFE, graphite, and other rubber, plastic, or high-performance sealing materials.
The selection process should consider material compatibility, dimensions, temperature, pressure, movement, installation conditions, and service environment together.
Conclusion
EPDM gaskets, PTFE packing, and graphite packing each have distinct advantages in industrial sealing applications.
EPDM gaskets are widely used for water, HVAC, cooling, and outdoor applications where water resistance and weather resistance are important. PTFE packing is well suited to applications requiring excellent chemical resistance and low friction. Graphite packing is commonly selected for high-temperature valves, pumps, steam systems, and industrial process equipment.
Choosing the right sealing material requires more than comparing material names. The process medium, temperature, pressure, equipment design, sealing location, movement, dimensions, and installation conditions should all be considered.
A manufacturer capable of supplying both standard industrial sealing products and custom-made sealing components can provide more flexible solutions for OEM, replacement, maintenance, and specialized industrial applications.
