Introduction

Seal failure is one of the most common causes of equipment downtime, leakage, and reduced operational efficiency in industrial systems. In demanding applications involving:

• High pressure
• Extreme temperature
• Dynamic motion
• Aggressive chemicals

traditional sealing solutions may struggle to maintain stable performance over time.

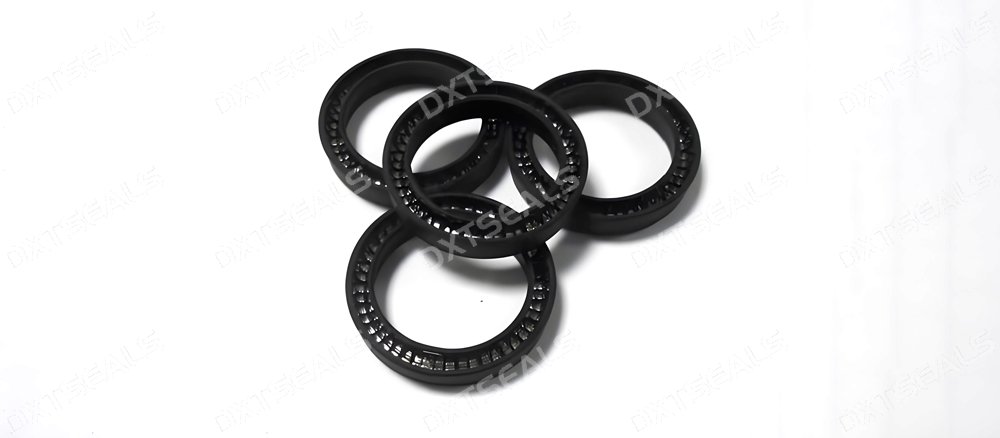

Spring energized seals (泛塞封) are widely used because of their excellent sealing reliability, low friction, and strong chemical resistance. However, achieving long service life depends heavily on two critical factors:

• Proper PTFE material selection
• Optimized spring structure design

This article explains how seal failures occur and how the correct combination of materials and spring design can significantly improve sealing performance and durability. At DXTSEALS, we specialize in customized spring energized sealing solutions engineered for demanding industrial environments.

1. Common Causes of Seal Failure

Before discussing prevention methods, it is important to understand the most common causes of seal failure.

Excessive Wear

Wear can occur because of:

• High friction
• Poor lubrication
• Improper material selection
• Excessive spring preload

Excessive wear gradually reduces sealing force and eventually leads to leakage.

Extrusion Damage

In high-pressure systems, insufficient support may cause the PTFE material to extrude into clearance gaps.

This often results in:

• Seal deformation
• Lip damage
• Sudden seal failure

Thermal Deformation

Extreme temperatures may cause:

• PTFE softening
• Dimensional changes
• Reduced spring effectiveness

Repeated thermal cycling may also accelerate material fatigue.

Chemical Attack

Improper material compatibility with aggressive media can cause:

• Material degradation
• Swelling
• Surface cracking
• Corrosion of metal spring components

Loss of Spring Compensation

Over time, poorly designed springs may lose elasticity, reducing:

• Contact pressure
• Wear compensation capability
• Low-pressure sealing performance

2. Why PTFE Material Selection Is Critical

The PTFE sealing jacket directly contacts the mating surface and operating media, making material selection one of the most important factors in preventing seal failure.

3. Advantages and Limitations of Virgin PTFE

Advantages

Virgin PTFE offers:

• Outstanding chemical resistance
• Extremely low friction
• Wide temperature capability
• Excellent purity

Limitations

However, virgin PTFE also has:

• Lower wear resistance
• Higher creep deformation under load
• Limited mechanical strength

For high-load or dynamic applications, filled PTFE materials are often preferred.

4. How Filled PTFE Materials Improve Seal Reliability

Glass-Filled PTFE

Provides:

• Better dimensional stability
• Improved compressive strength
• Reduced creep deformation

Suitable for:

• Hydraulic systems
• Medium-to-high pressure applications

Carbon-Filled PTFE

Offers:

• Excellent wear resistance
• Improved thermal conductivity
• Superior dynamic sealing performance

Ideal for:

• High-speed motion systems
• Rotary applications
• Heavy wear environments

Graphite-Filled PTFE

Provides:

• Excellent self-lubrication
• High-temperature stability
• Reduced friction and heat generation

Suitable for:

• Dry-running conditions
• High-temperature equipment

At DXTSEALS, PTFE fillers are selected according to actual operating pressure, speed, and media conditions.

5. The Critical Role of Spring Design in Preventing Seal Failure

The internal spring provides continuous preload force to maintain sealing contact even when:

• Pressure fluctuates
• PTFE wears over time
• Thermal expansion occurs

Proper spring design is essential for stable long-term sealing performance.

6. How Different Spring Structures Affect Seal Reliability

V-Spring Structures

Characteristics:

• Low preload force
• Fast elastic response
• Low friction

Advantages:

• Reduced wear in dynamic systems
• Excellent high-speed sealing performance

Typical applications:

• Pneumatic systems
• Precision motion equipment
• Aerospace applications

Helical Spring Structures

Characteristics:

• Strong radial sealing force
• Excellent compensation capability

Advantages:

• Reliable sealing under high pressure and vacuum
• Superior wear compensation

Typical applications:

• Oil & gas systems
• Hydraulic equipment
• Semiconductor vacuum systems

U-Spring Structures

Characteristics:

• Balanced preload force
• Stable sealing performance

Advantages:

• Versatile industrial application capability
• Moderate friction and wear characteristics

7. Matching Spring Load with PTFE Material

Improper combinations between spring force and PTFE material can accelerate failure.

Excessive Spring Force + Soft PTFE

May cause:

• Rapid wear
• Excessive friction
• Heat buildup

Insufficient Spring Force + High Dynamic Conditions

May lead to:

• Leakage
• Unstable sealing
• Poor wear compensation

At DXTSEALS, spring preload and PTFE material properties are optimized together to maximize performance and service life.

8. Importance of Groove Design and Surface Finish

Even the best seal materials and spring structures can fail if groove design is incorrect.

Key factors include:

• Proper compression ratio
• Controlled extrusion clearance
• Accurate dimensional tolerances
• Appropriate surface roughness

Poor groove design may result in:

• Uneven wear
• Leakage
• Seal instability

9. Selection Recommendations for Different Operating Conditions

High-Speed Dynamic Applications

Recommended:

• Carbon-filled PTFE
• V-spring structures
• Low preload design

Purpose: reduce friction and wear.

High-Pressure Systems

Recommended:

• Glass-filled PTFE
• Helical spring structures
• Strong anti-extrusion groove support

Purpose: maintain stable sealing under heavy load.

High-Temperature Environments

Recommended:

• Graphite-filled PTFE
• Heat-resistant alloy springs

Purpose: improve thermal stability and reduce material degradation.

Chemical and Corrosive Applications

Recommended:

• Virgin PTFE
• Hastelloy or corrosion-resistant springs

Purpose: maximize chemical compatibility and corrosion resistance.

10. Future Trends in Seal Failure Prevention

Modern sealing technologies are evolving toward:

• Advanced composite PTFE materials
• Precision spring preload optimization
• Simulation-based wear prediction
• Lower friction designs
• Improved thermal management

These innovations help extend seal lifespan and reduce maintenance costs.

At DXTSEALS, we continuously develop advanced sealing technologies to improve reliability in demanding industrial applications.

Conclusion

Preventing seal failure requires a comprehensive understanding of both PTFE material behavior and spring structure performance.

Proper material and spring selection can significantly improve:

• Wear resistance
• Leakage control
• Friction management
• Pressure compensation
• Overall seal lifespan

Key recommendations include:

• Use filled PTFE materials for demanding dynamic or high-pressure conditions
• Match spring preload to operating requirements
• Optimize groove dimensions and surface finish
• Consider temperature, pressure, and media compatibility together

At DXTSEALS, we provide customized spring energized sealing solutions designed to minimize seal failure and maximize long-term operational reliability.

If you need assistance selecting the right spring energized seal materials or spring structures for your application, contact DXTSEALS today for professional technical support and customized sealing solutions.
