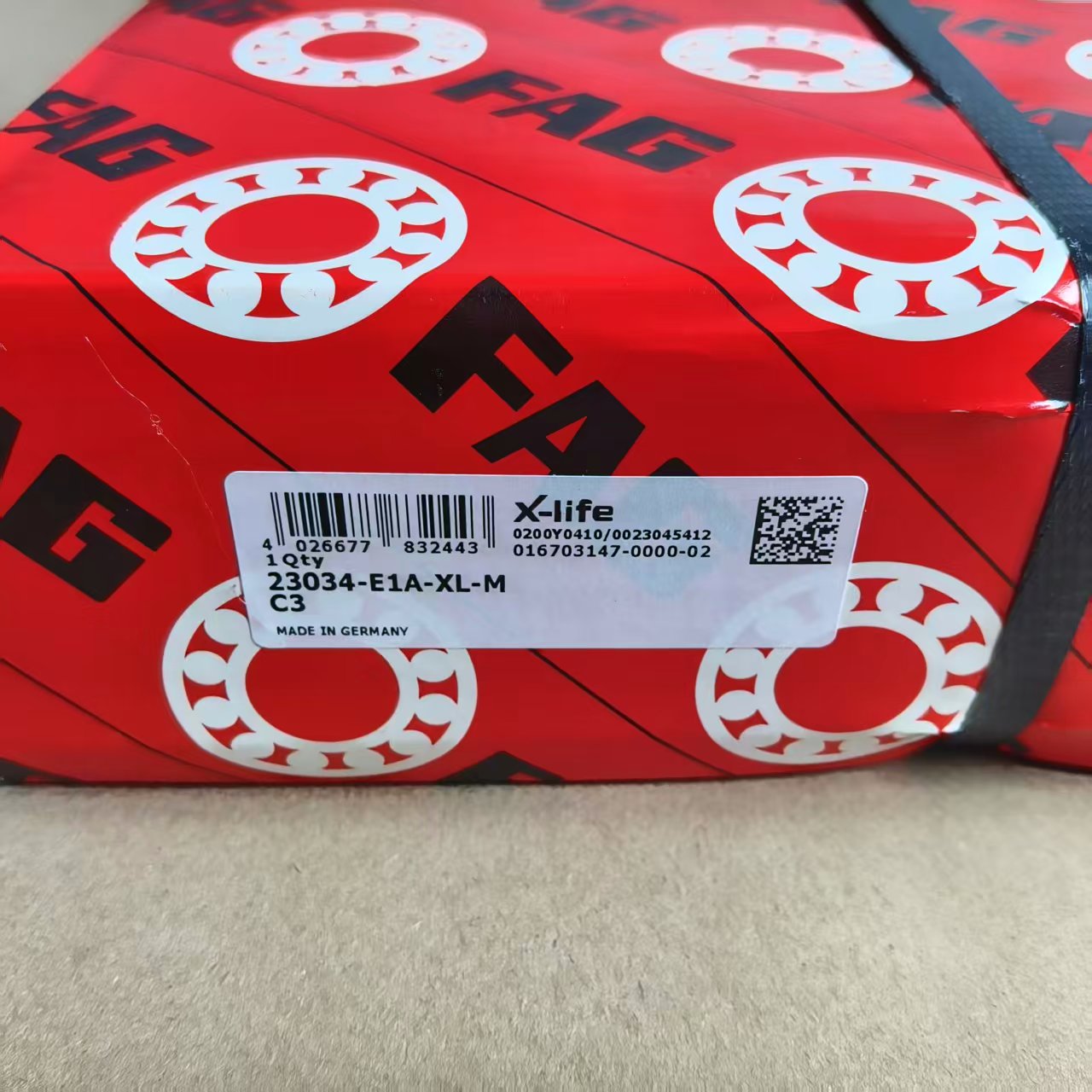

FAG 23034-E1A-XL-M Spherical Roller Bearing | High Radial Load, XL Life, C3 Clearance

Introduction

At DXTSEALS, we are proud to present the FAG 23034-E1A-XL-M spherical roller bearing — engineered for demanding industrial conditions where high radial loads, occasional axial forces, thermal variation, and misalignment are present. With advanced XL (X-Life) design, generous C3 radial clearance, and reliability in harsh environments, this bearing offers outstanding performance and long service life.

1. Technical Specifications & Design Features

2. Advantages & Application Benefits

• XL / X-Life design gives improved fatigue strength and longer life under heavy loads and stress.

• C3 radial clearance allows for better performance in high temperature or high misalignment conditions, reducing risk of seizure or excessive stress.

• Brass cage enhances durability under shock, vibration, and intermittent heavy loading.

• Lubrication features (groove + holes) facilitate maintenance and ensure even lubricant distribution.

• Self-aligning capability provides tolerance for shaft deflection or mounting misalignment, reducing stress on other system components.

These features make the 23034-E1A-XL-M an excellent choice for heavy machinery, gearboxes, mills, industrial fans, vibratory equipment, and other high-duty radial load applications.

3. Typical Applications

• Crushers, grinding mills, and mining machinery

• Large industrial gearboxes / reducers

• Vibrating screens, material handling equipment

• Fans / blowers with large impellers, exposed to thermal gradients

• Machinery subject to shaft deflection or misaligned housings

4. Installation & Maintenance Guidance

• Ensure housing and shaft shoulders meet minimum/maximum dimensions (e.g. Da_max ≈ 249.8 mm; da_min ≈ 180.2 mm) to avoid interference.

• Maintain sufficient clearance / avoid excessive preload when fitting; note the C3 clearance.

• Use proper lubricant, follow recommended relubrication interval. Don’t overfill.

• Early operation: monitor temperature, vibration, and noise.

• Use correct mounting tools/practice to prevent damage, especially avoid shocks to the raceways or rollers.

5. Real Customer Case Study

Case Study: Heavy-Duty Gearbox in Cement Plant
Customer: Large cement manufacturer
Application: Main gearbox supporting mill drive with high radial loads under thermal cycling and occasional misalignment due to foundation settling.
Bearing Used: FAG 23034-E1A-XL-M, C3 clearance, brass cage, open type.
Operating Conditions:

• Radial load estimated at ~ 500-700 kN during peak operation

• Operating speed ~ 1,800 rpm

• Ambient temp: 25-45 °C; parts of the gearbox reach up to ~ 120-150 °C under load

• Exposed to dust, vibration, and occasional moisture ingress

  Outcomes:

• After 24 months, bearing showed no significant creep or hot spots;

• Maintenance intervals extended by ~ 30% compared to previous standard spherical roller bearings without XL/C3 design;

• Operational vibration levels remained within acceptable limits (< 4 mm/s velocity) and no shaft seating or misalignment damage noted;

• Downtime for bearing-related failures reduced significantly, improving plant availability.
